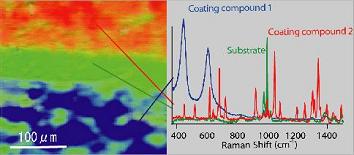

Raman image of the painting of drink can is shown. 785nm excitation is used to avoid fluorescence emission from the sample. Green color shows substrate. Blue and red color shows the unevenness distribution of two coating compounds.

Raman image of the painting of drink can

Measurement time: 10 min
Number of spectra: 40,000 (400(y)×100(x))
